Lift Shaft Towers

4.2m Working Height | 2.2m Platform Height
4.7m Working Height | 2.7m Platform Height
5.2m Working Height | 3.2m Platform Height
5.7m Working Height | 3.7m Platform Height
6.2m Working Height | 4.2m Platform Height
6.7m Working Height | 4.7m Platform Height
7.2m Working Height | 5.2m Platform Height
7.7m Working Height | 5.7m Platform Height
8.2m Working Height | 6.2m Platform Height
8.7m Working Height | 6.7m Platform Height
9.2m Working Height | 7.2m Platform Height
9.7m Working Height | 7.7m Platform Height
10.2m Working Height | 8.2m Platform Height
10.7m Working Height | 8.7m Platform Height
11.2m Working Height | 9.2m Platform Height
11.7m Working Height | 9.7m Platform Height
12.2m Working Height | 10.2m Platform Height
12.7m Working Height | 10.7m Platform Height
13.2m Working Height | 11.2m Platform Height
13.7m Working Height | 11.7m Platform Height
14.2m Working Height | 12.2m Platform Height
16.2m Working Height | 14.2m Platform Height
18.2m Working Height | 16.2m Platform Height
20.2m Working Height | 18.2m Platform Height
22.2m Working Height | 20.2m Platform Height

4.2m Working Height | 2.2m Platform Height

Click on each ‘Description’ to view component photo

Code	Description	Quantity

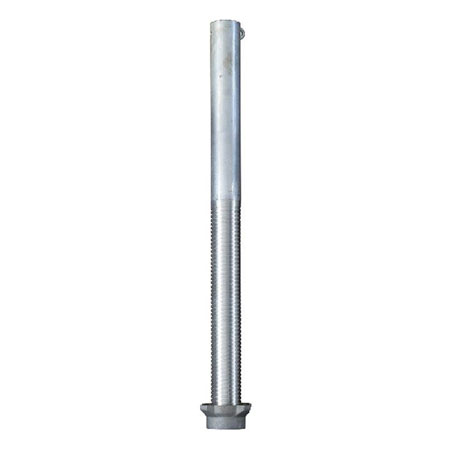

	500mm Adjustable legs	4

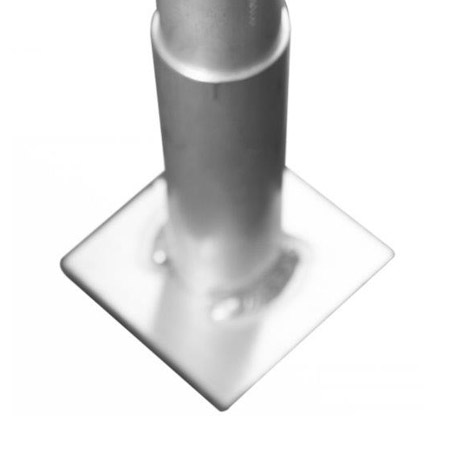

	Base Plates	4
	2m Walk Through Frames	1

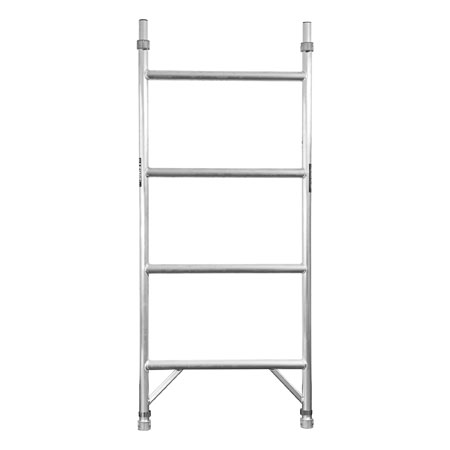

	4 Rung 1m Frames	2

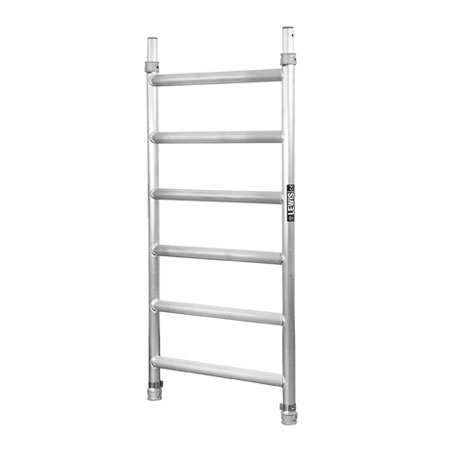

	6 Rung 1.5m Frames	0
	8 Rung 2m Frames	1

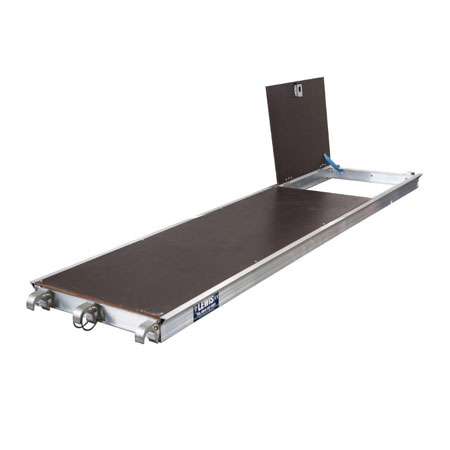

	Trap Door Platforms	1

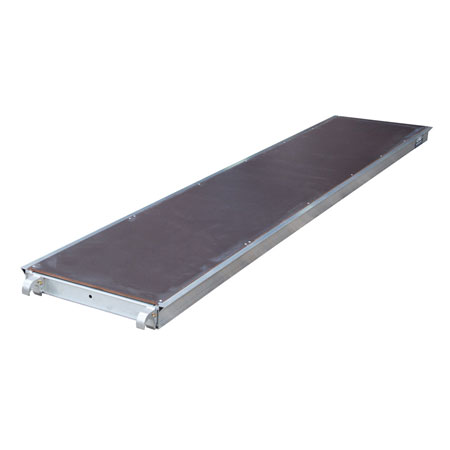

	Fixed Platforms (For Double Width only)	1

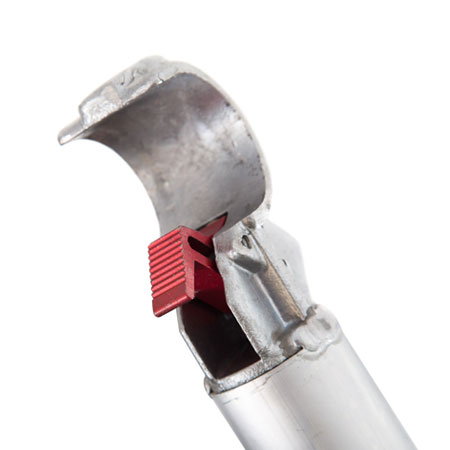

	Red Horizontal Braces	6

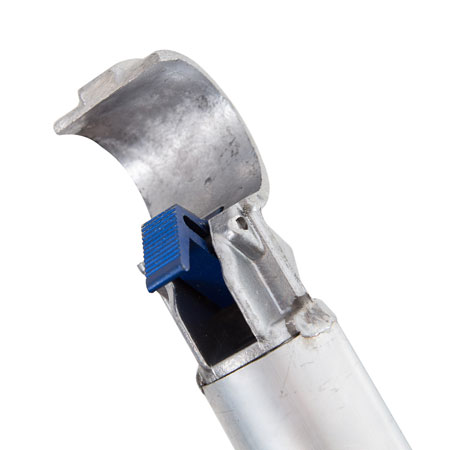

	Blue Diagonal Braces	3

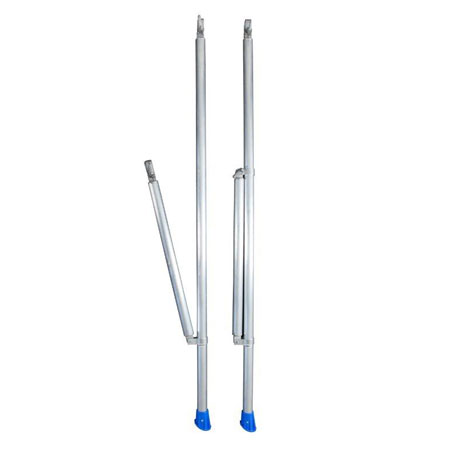

	Confined Space Stabilisers	0
	Folding Toe Board Set	1

4.7m Working Height | 2.7m Platform Height

Click on each ‘Description’ to view component photo

Code	Description	Quantity
	500mm Adjustable legs	4
	Base Plates	4
	2m Walk Through Frames	1
	4 Rung 1m Frames	0
	6 Rung 1.5m Frames	2
	8 Rung 2m Frames	1
	Trap Door Platforms	2
	Fixed Platforms (For Double Width only)	2
	Red Horizontal Braces	6
	Blue Diagonal Braces	4
	Confined Space Stabilisers	0
	Folding Toe Board Set	1

5.2m Working Height | 3.2m Platform Height

Click on each ‘Description’ to view component photo

Code	Description	Quantity
	500mm Adjustable legs	4
	Base Plates	4
	2m Walk Through Frames	1
	4 Rung 1m Frames	0
	6 Rung 1.5m Frames	0
	8 Rung 2m Frames	3
	Trap Door Platforms	2
	Fixed Platforms (For Double Width only)	1
	Red Horizontal Braces	10
	Blue Diagonal Braces	5
	Confined Space Stabilisers	0
	Folding Toe Board Set	1

5.7m Working Height | 3.7m Platform Height

Click on each ‘Description’ to view component photo

Code	Description	Quantity
	500mm Adjustable legs	4
	Base Plates	4
	2m Walk Through Frames	1
	4 Rung 1m Frames	2
	6 Rung 1.5m Frames	2
	8 Rung 2m Frames	1
	Trap Door Platforms	2
	Fixed Platforms (For Double Width only)	1
	Red Horizontal Braces	10
	Blue Diagonal Braces	6
	Confined Space Stabilisers	0
	Folding Toe Board Set	1

6.2m Working Height | 4.2m Platform Height

Click on each ‘Description’ to view component photo

Code	Description	Quantity
	500mm Adjustable legs	4
	Base Plates	4
	2m Walk Through Frames	1
	4 Rung 1m Frames	2
	6 Rung 1.5m Frames	0
	8 Rung 2m Frames	3
	Trap Door Platforms	2
	Fixed Platforms (For Double Width only)	1
	Red Horizontal Braces	10
	Blue Diagonal Braces	7
	Confined Space Stabilisers	0
	Folding Toe Board Set	1

6.7m Working Height | 4.7m Platform Height

Click on each ‘Description’ to view component photo

Code	Description	Quantity
	500mm Adjustable legs	4
	Base Plates	4
	2m Walk Through Frames	1
	4 Rung 1m Frames	0
	6 Rung 1.5m Frames	2
	8 Rung 2m Frames	3
	Trap Door Platforms	2
	Fixed Platforms (For Double Width only)	2
	Red Horizontal Braces	10
	Blue Diagonal Braces	8
	Confined Space Stabilisers	0
	Folding Toe Board Set	1

7.2m Working Height | 5.2m Platform Height

Click on each ‘Description’ to view component photo

Code	Description	Quantity
	500mm Adjustable legs	4
	Base Plates	4
	2m Walk Through Frames	1
	4 Rung 1m Frames	0
	6 Rung 1.5m Frames	0
	8 Rung 2m Frames	5
	Trap Door Platforms	3
	Fixed Platforms (For Double Width only)	1
	Red Horizontal Braces	14
	Blue Diagonal Braces	9
	Confined Space Stabilisers	4
	Folding Toe Board Set	1

7.7m Working Height | 5.7m Platform Height

Click on each ‘Description’ to view component photo

Code	Description	Quantity
	500mm Adjustable legs	4
	Base Plates	4
	2m Walk Through Frames	1
	4 Rung 1m Frames	2
	6 Rung 1.5m Frames	2
	8 Rung 2m Frames	3
	Trap Door Platforms	3
	Fixed Platforms (For Double Width only)	1
	Red Horizontal Braces	14
	Blue Diagonal Braces	10
	Confined Space Stabilisers	4
	Folding Toe Board Set	1

8.2m Working Height | 6.2m Platform Height

Click on each ‘Description’ to view component photo

Code	Description	Quantity
	500mm Adjustable legs	4
	Base Plates	4
	2m Walk Through Frames	1
	4 Rung 1m Frames	2
	6 Rung 1.5m Frames	0
	8 Rung 2m Frames	5
	Trap Door Platforms	3
	Fixed Platforms (For Double Width only)	1
	Red Horizontal Braces	14
	Blue Diagonal Braces	11
	Confined Space Stabilisers	4
	Folding Toe Board Set	1

8.7m Working Height | 6.7m Platform Height

Click on each ‘Description’ to view component photo

Code	Description	Quantity
	500mm Adjustable legs	4
	Base Plates	4
	2m Walk Through Frames	1
	4 Rung 1m Frames	0
	6 Rung 1.5m Frames	2
	8 Rung 2m Frames	5
	Trap Door Platforms	3
	Fixed Platforms (For Double Width only)	1
	Red Horizontal Braces	14
	Blue Diagonal Braces	12
	Confined Space Stabilisers	4
	Folding Toe Board Set	1

9.2m Working Height | 7.2m Platform Height

Click on each ‘Description’ to view component photo

Code	Description	Quantity
	500mm Adjustable legs	4
	Base Plates	4
	2m Walk Through Frames	1
	4 Rung 1m Frames	0
	6 Rung 1.5m Frames	0
	8 Rung 2m Frames	7
	Trap Door Platforms	4
	Fixed Platforms (For Double Width only)	1
	Red Horizontal Braces	18
	Blue Diagonal Braces	13
	Confined Space Stabilisers	4
	Folding Toe Board Set	1

9.7m Working Height | 7.7m Platform Height

Click on each ‘Description’ to view component photo

Code	Description	Quantity
	500mm Adjustable legs	4
	Base Plates	4
	2m Walk Through Frames	1
	4 Rung 1m Frames	2
	6 Rung 1.5m Frames	2
	8 Rung 2m Frames	5
	Trap Door Platforms	4
	Fixed Platforms (For Double Width only)	1
	Red Horizontal Braces	18
	Blue Diagonal Braces	14
	Confined Space Stabilisers	4
	Folding Toe Board Set	1

10.2m Working Height | 8.2m Platform Height

Click on each ‘Description’ to view component photo

Code	Description	Quantity
	500mm Adjustable legs	4
	Base Plates	4
	2m Walk Through Frames	1
	4 Rung 1m Frames	2
	6 Rung 1.5m Frames	0
	8 Rung 2m Frames	7
	Trap Door Platforms	4
	Fixed Platforms (For Double Width only)	1
	Red Horizontal Braces	18
	Blue Diagonal Braces	15
	Confined Space Stabilisers	8
	Folding Toe Board Set	1

10.7m Working Height | 8.7m Platform Height

Click on each ‘Description’ to view component photo

Code	Description	Quantity
	500mm Adjustable legs	4
	Base Plates	4
	2m Walk Through Frames	1
	4 Rung 1m Frames	0
	6 Rung 1.5m Frames	2
	8 Rung 2m Frames	7
	Trap Door Platforms	4
	Fixed Platforms (For Double Width only)	1
	Red Horizontal Braces	18
	Blue Diagonal Braces	16
	Confined Space Stabilisers	8
	Folding Toe Board Set	1

11.2m Working Height | 9.2m Platform Height

Click on each ‘Description’ to view component photo

Code	Description	Quantity
	500mm Adjustable legs	4
	Base Plates	4
	2m Walk Through Frames	1
	4 Rung 1m Frames	0
	6 Rung 1.5m Frames	0
	8 Rung 2m Frames	9
	Trap Door Platforms	5
	Fixed Platforms (For Double Width only)	1
	Red Horizontal Braces	22
	Blue Diagonal Braces	17
	Confined Space Stabilisers	8
	Folding Toe Board Set	1

11.7m Working Height | 9.7m Platform Height

Click on each ‘Description’ to view component photo

Code	Description	Quantity
	500mm Adjustable legs	4
	Base Plates	4
	2m Walk Through Frames	1
	4 Rung 1m Frames	2
	6 Rung 1.5m Frames	2
	8 Rung 2m Frames	7
	Trap Door Platforms	5
	Fixed Platforms (For Double Width only)	1
	Red Horizontal Braces	22
	Blue Diagonal Braces	18
	Confined Space Stabilisers	8
	Folding Toe Board Set	1

12.2m Working Height | 10.2m Platform Height

Click on each ‘Description’ to view component photo

Code	Description	Quantity
	500mm Adjustable legs	4
	Base Plates	4
	2m Walk Through Frames	1
	4 Rung 1m Frames	2
	6 Rung 1.5m Frames	0
	8 Rung 2m Frames	9
	Trap Door Platforms	5
	Fixed Platforms (For Double Width only)	1
	Red Horizontal Braces	22
	Blue Diagonal Braces	19
	Confined Space Stabilisers	8
	Folding Toe Board Set	1

12.7m Working Height | 10.7m Platform Height

Click on each ‘Description’ to view component photo

Code	Description	Quantity
	500mm Adjustable legs	4
	Base Plates	4
	2m Walk Through Frames	1
	4 Rung 1m Frames	0
	6 Rung 1.5m Frames	2
	8 Rung 2m Frames	9
	Trap Door Platforms	6
	Fixed Platforms (For Double Width only)	1
	Red Horizontal Braces	22
	Blue Diagonal Braces	20
	Confined Space Stabilisers	8
	Folding Toe Board Set	1

13.2m Working Height | 11.2m Platform Height

Click on each ‘Description’ to view component photo

Code	Description	Quantity
	500mm Adjustable legs	4
	Base Plates	4
	2m Walk Through Frames	1
	4 Rung 1m Frames	0
	6 Rung 1.5m Frames	0
	8 Rung 2m Frames	11
	Trap Door Platforms	6
	Fixed Platforms (For Double Width only)	1
	Red Horizontal Braces	26
	Blue Diagonal Braces	21
	Confined Space Stabilisers	10
	Folding Toe Board Set	1

13.7m Working Height | 11.7m Platform Height

Click on each ‘Description’ to view component photo

Code	Description	Quantity
	500mm Adjustable legs	4
	Base Plates	4
	2m Walk Through Frames	1
	4 Rung 1m Frames	2
	6 Rung 1.5m Frames	2
	8 Rung 2m Frames	9
	Trap Door Platforms	6
	Fixed Platforms (For Double Width only)	1
	Red Horizontal Braces	26
	Blue Diagonal Braces	22
	Confined Space Stabilisers	10
	Folding Toe Board Set	1

14.2m Working Height | 12.2m Platform Height

Click on each ‘Description’ to view component photo

Code	Description	Quantity
	500mm Adjustable legs	4
	Base Plates	4
	2m Walk Through Frames	1
	4 Rung 1m Frames	2
	6 Rung 1.5m Frames	0
	8 Rung 2m Frames	11
	Trap Door Platforms	6
	Fixed Platforms (For Double Width only)	1
	Red Horizontal Braces	26
	Blue Diagonal Braces	23
	Confined Space Stabilisers	10
	Folding Toe Board Set	1

16.2m Working Height | 14.2m Platform Height

Click on each ‘Description’ to view component photo

Code	Description	Quantity
	500mm Adjustable legs	4
	Base Plates	4
	2m Walk Through Frames	1
	4 Rung 1m Frames	2
	6 Rung 1.5m Frames	0
	8 Rung 2m Frames	13
	Trap Door Platforms	6
	Fixed Platforms (For Double Width only)	1
	Red Horizontal Braces	26
	Blue Diagonal Braces	24
	Confined Space Stabilisers	10
	Folding Toe Board Set	1

18.2m Working Height | 16.2m Platform Height

Click on each ‘Description’ to view component photo

Code	Description	Quantity
	500mm Adjustable legs	4
	Base Plates	4
	2m Walk Through Frames	1
	4 Rung 1m Frames	2
	6 Rung 1.5m Frames	0
	8 Rung 2m Frames	15
	Trap Door Platforms	7
	Fixed Platforms (For Double Width only)	1
	Red Horizontal Braces	30
	Blue Diagonal Braces	25
	Confined Space Stabilisers	12
	Folding Toe Board Set	1

20.2m Working Height | 18.2m Platform Height

Click on each ‘Description’ to view component photo

Code	Description	Quantity
	500mm Adjustable legs	4
	Base Plates	4
	2m Walk Through Frames	1
	4 Rung 1m Frames	2
	6 Rung 1.5m Frames	0
	8 Rung 2m Frames	17
	Trap Door Platforms	7
	Fixed Platforms (For Double Width only)	1
	Red Horizontal Braces	30
	Blue Diagonal Braces	26
	Confined Space Stabilisers	12
	Folding Toe Board Set	1

22.2m Working Height | 20.2m Platform Height

Click on each ‘Description’ to view component photo

Code	Description	Quantity
	500mm Adjustable legs	4
	Base Plates	4
	2m Walk Through Frames	1
	4 Rung 1m Frames	2
	6 Rung 1.5m Frames	0
	8 Rung 2m Frames	19
	Trap Door Platforms	7
	Fixed Platforms (For Double Width only)	1
	Red Horizontal Braces	30
	Blue Diagonal Braces	27
	Confined Space Stabilisers	12
	Folding Toe Board Set	1

Lift Shaft Towers
